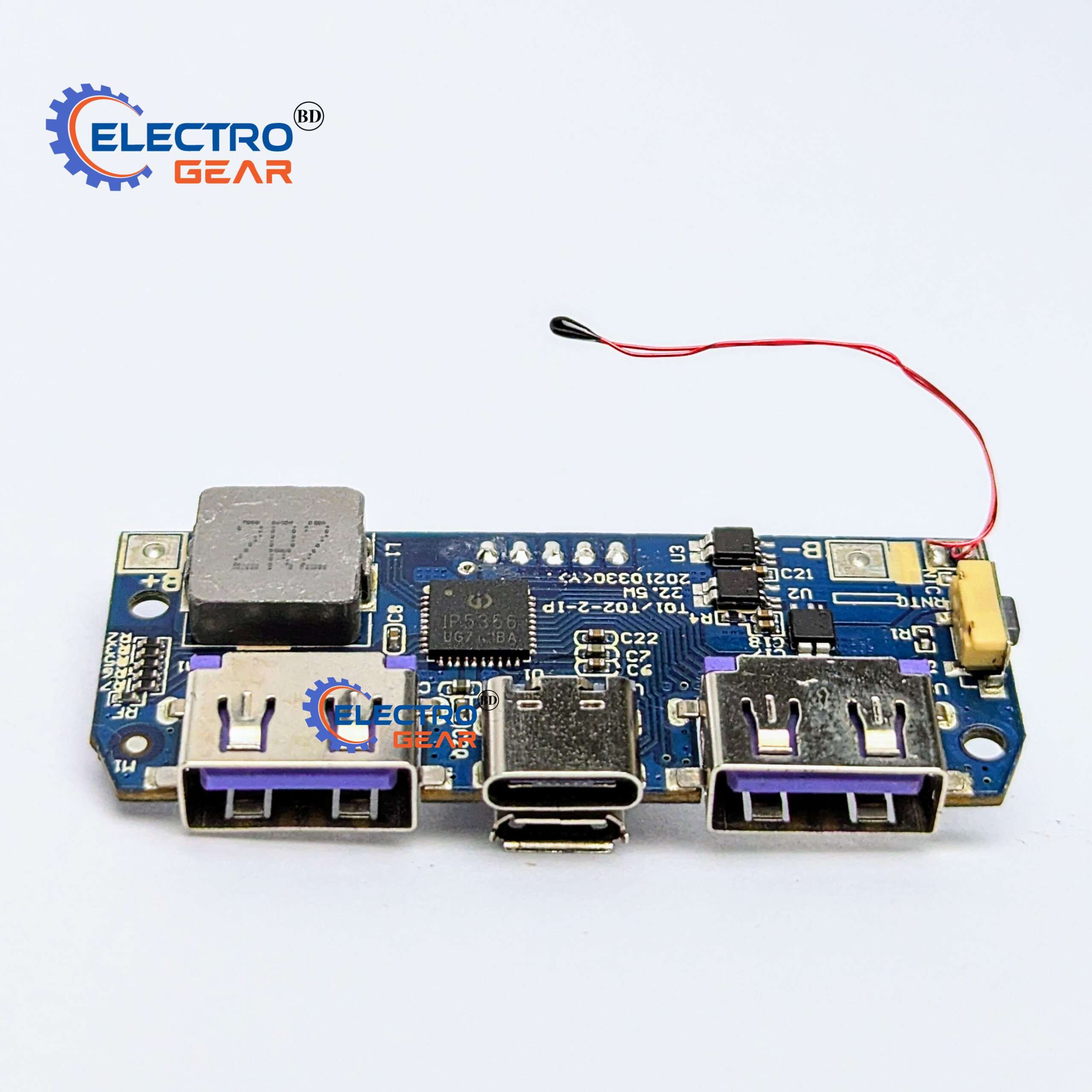

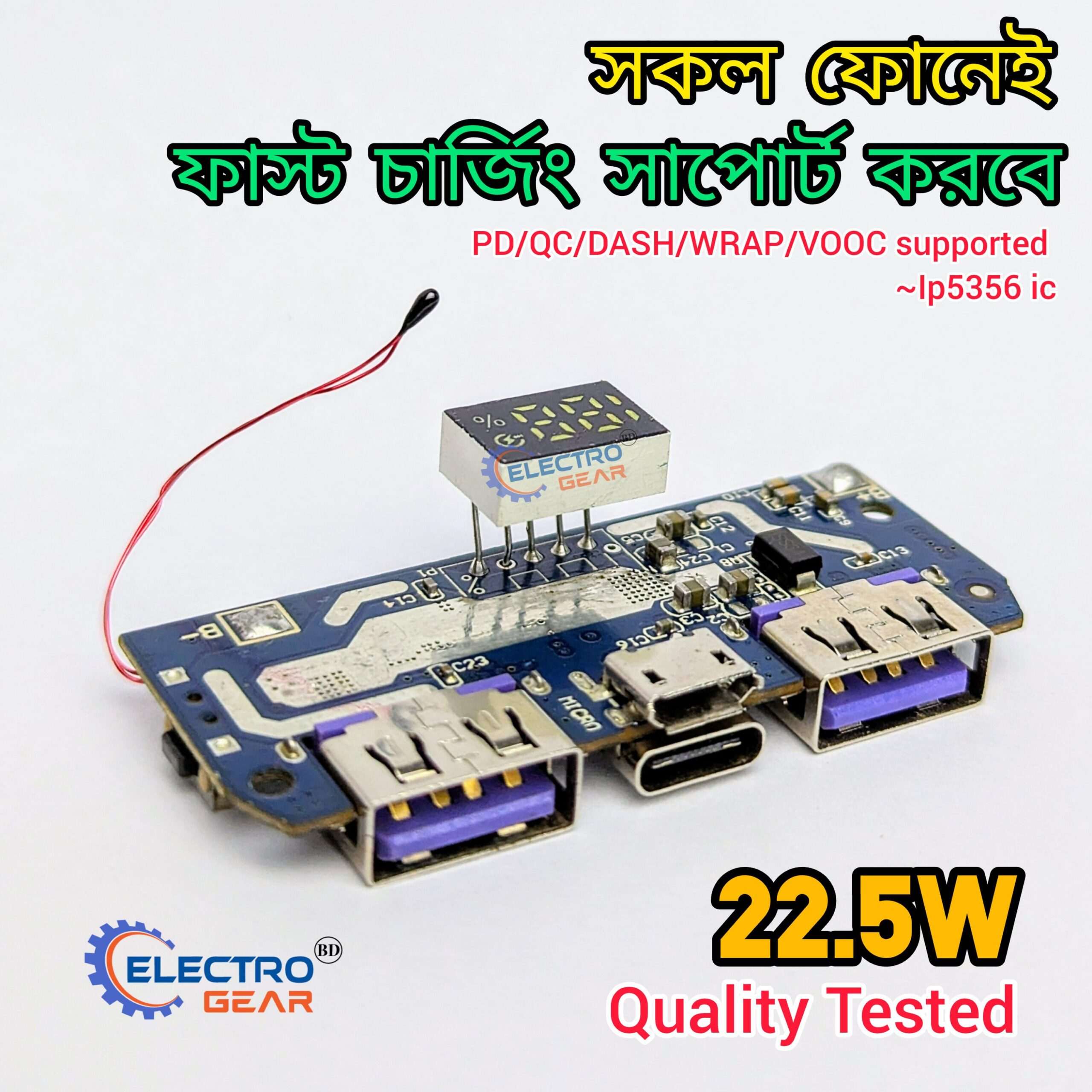

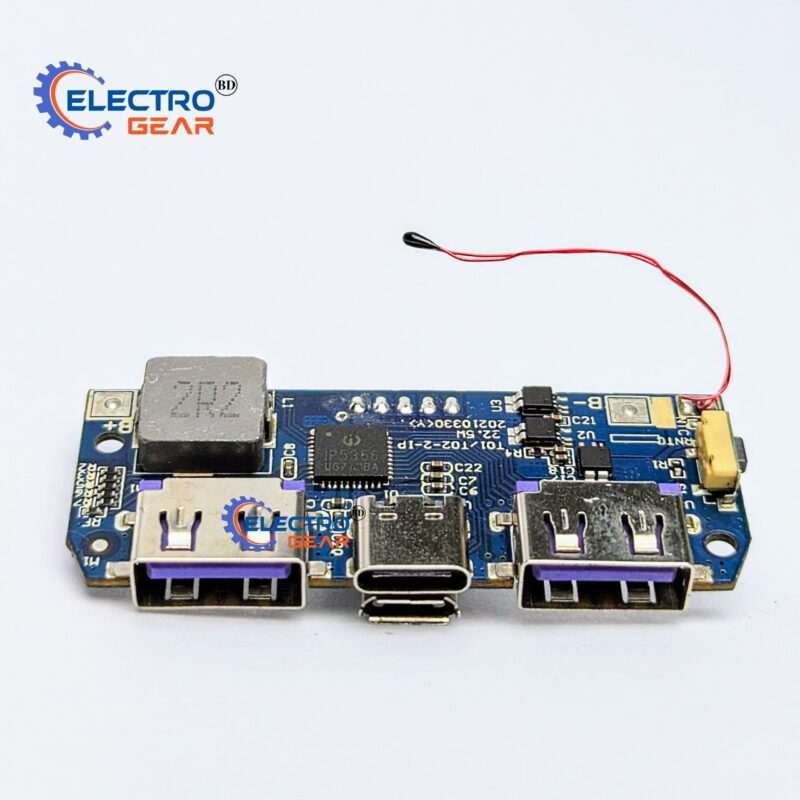

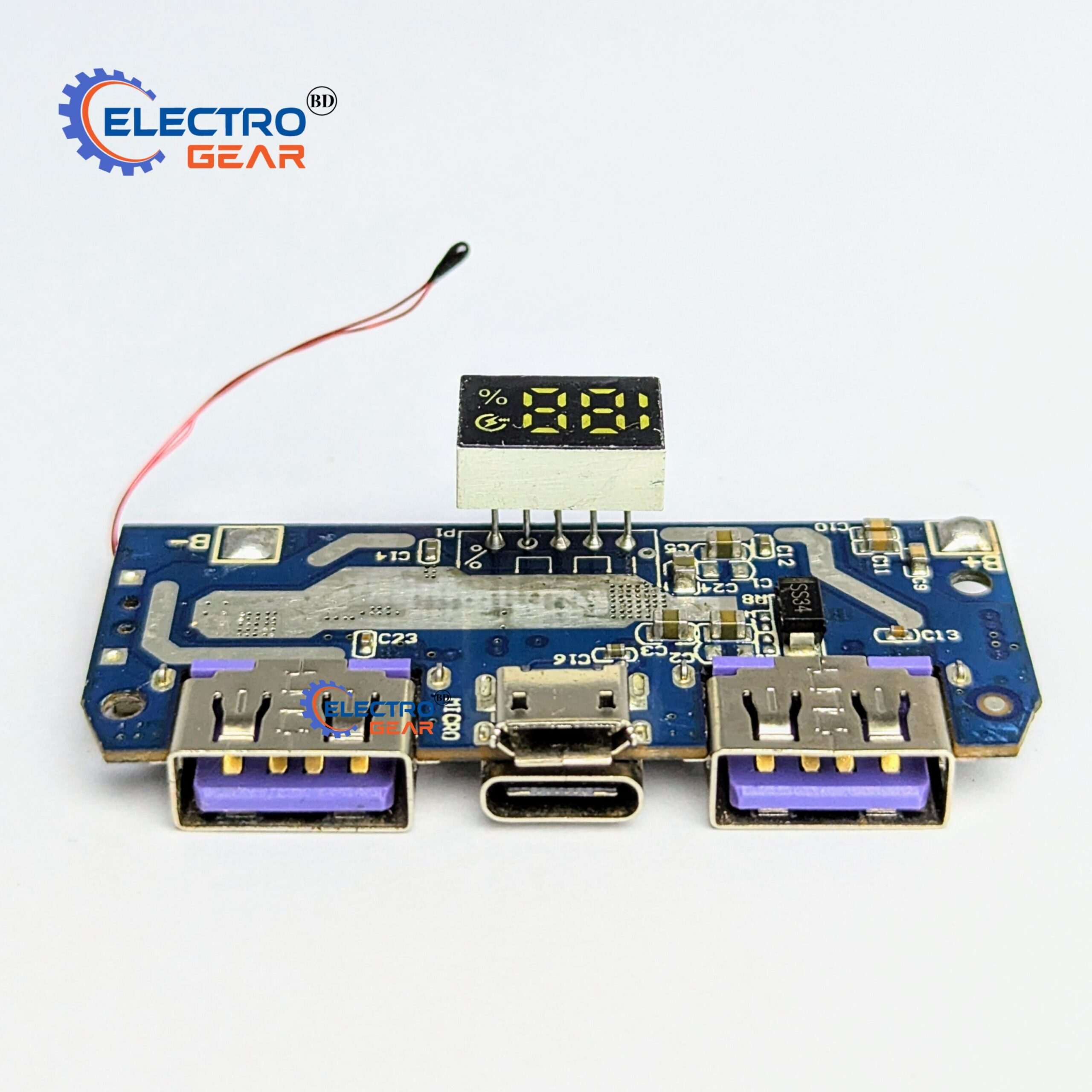

iP5356 22.5W Dual USB Power Bank Module With Digital Display

Specifications:

▫️USB output fast charging protocol (support

▫️QC3.0/QC2.0/AFC/FCP/SCP/DASH/WRAP/VOOC) (output 5V/3A 9V/2A 12V/1.5A 5V/4.5A 4.5V/5A)

▫️Type-C support PD3.0/PD20/OC30/0C20/AFC/FCP/SCP/QC/DASH/WRAP/VOOC)

▫️input (output 5V/3A9V/22A12V/1.5A5V/4.5A 4.5V/5A), (input 5V/3A 9V/2A12V/1.5A)

▫️Micro input support AFC/FCP fast charging input (input

5V/2A9V/2A)

▫️Short circuit protection: <50uS ▫️Self-dissipation: Max 150uA ▫️Discharge constant current: 5V3A ▫️Recovery condition: Disconnect the load ▫️Suggested operating conditions: 5V3A ▫️Suggested operating temperature: -5~45°C ▫️Charging input voltage: 4.5~5V ▫️Constant charging voltage: 4.00-4.2V ▫️Termination charging voltage: 4.2+0.05V
